PulsaCoil ECO Stainless By Gledhill

PulsaCoil Eco Stainless by Gledhill is a thermal storage cylinder. It comes in three sizes. 150L, 180L and 220L. We keep these three in stock in case you need an urgent installation or replacement by us. Each size is recommended for specific sized apartments. High corrosion resistant stainless steel is used in manufacturing this model unlike the previous Pulsacoil 1, 3, 2000, A Class and BP. It is a mains pressured system which utilises off-peak electric and has been specifically designed for apartments. Also it eradicates that chances legionella. Each unit comes with the following:

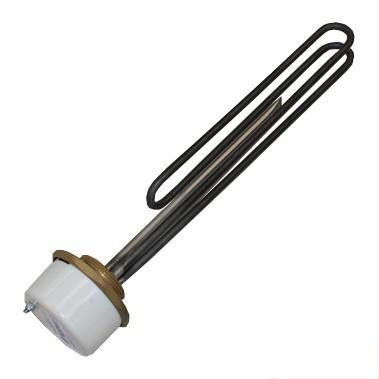

• Two PulsaCoil Eco Specific Immersion Heating Elements

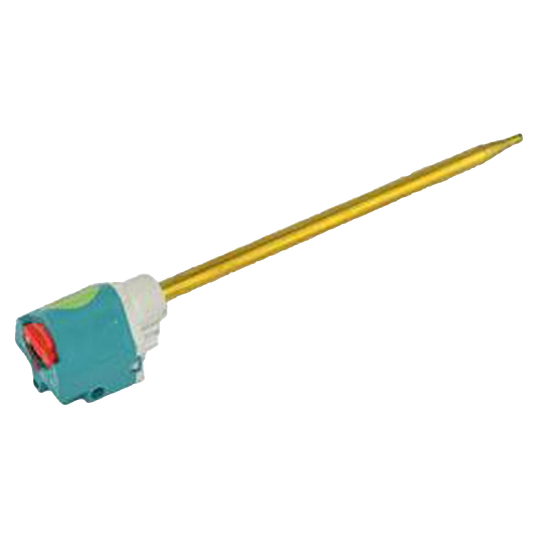

• Two Thermostat Rods Which Reach 75°C
• Plated Heat Exchanger
• Economical ErP Ready Pump
• Overheat Sensor
• PulsaCoil Eco Specific Flow Sensor
• DHW Sensor
• Pump Speed Control Board

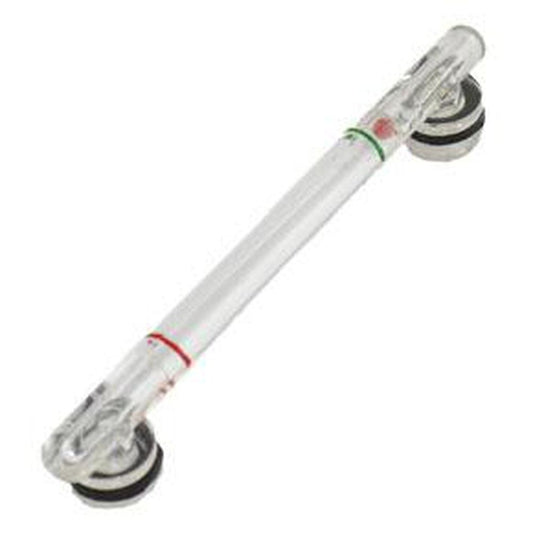

• Header Tank With Built On Site Glass
• Drain Off Valve

This system provides on demand hot water with a reduced delivery time of up to 75% with the introduction of the ErP ready pump, new software and pump speed control board. Giving you hot water faster than previous models. Unlike previous versions with a plated heat exchanger and a pump, the Gledhill Pulsacoil Eco Stainless has been striped to it bare essentials. This helps in reducing breakdowns and faults. Saving you money and inconvenience in the long term. So no more overheat stats tripping, relays burning, din rail assembly or relpol relay. It also overcomes the requirement The Building Regulations 2010 Approved Document G which means its a straight forward switch form your previous Pulsacoil 1, 3, 2000, A Class, BP or Stainless to this new one. Also building control does not need to be notified as a discharge pipe is not needed. So if you have a leaking PulsaCoil and need it replaced or simply are looking for the latest Pulsacoil for your building project ill in the form below.

PulsaCoil Eco Specifications

Below are the three PulsaCoil Eco systems with size and weight specifications as well as recommended sizes for each apartment. The following information in from Gledhill Building Products Ltd the manufacturer. We would recommend you read it carefully so you have a better understanding on how the new Gledhill PulsaCoil Eco Stainless works and which model to choose.

PulsaCoil Eco Is A Stainless Steel System

The system has now been upgraded to stainless steel. Watch the video below to see why that matters.

PulsaCoil Eco Stainless 150

Load Profile - M Energy Efficiency Class - D Engery Efficiemcy % - 34 Annual Consumption (kWh) - 2429 Other Load Profile - N/A Thermostat Temperature Setting °C - 75 Sound Power Level (DB) - 15 Off-Peak Available - Yes On-Peak Available - Yes Pulsacoil Eco Stainless 150 Heat Loss (Watts) - 56 Height (mm) - 1145 Width (mm) - 560 Depth (mm) - 630 Height Min Cupboard Size (mm) - 1895 Width Min Cupboard Size (mm) - 600 Depth Min Cupboard Size (mm) - 645 Weight (Empty) (Kg) - 45 Weight (Full) (Kg) - 192 Volume Of Water Heated By On-Peak Heater (Litres) - 80 Volume Of Water Heated By Off-Peak Heater (Litres) - 147

Gledhill PulsaCoil Eco 150 Model Selection

The Pulsacoil Eco 150 can work in the following apartment sizes as specified by the manufacturer. 1-2 Bedroom, with 1 bathroom or en-suite shower room. This can be on a standard economy-7 tariff or economy-10 tariff. 2-3 Bedroom, with 1 bathroom and 1 en-suite shower room. This can be on a standard economy-7 tariff or economy-10 tariff. 2-3 Bedroom, with 1 bathroom and 2 en-suite shower room. This can be on a economy-10 tariff only.



PulsaCoil Eco Stainless 150 Notes By Gledhill

1. Plastic top up cistern will be supplied separately and is not included in the measurements. We recommend it be installed directly on the Pulsacoil Eco Stainless if possible.
2. The flow rates are based on a 35°C  temperature and assume that recommended pressures and adequate flow are available at the appliance. The actual flow rate from the appliance is automatically regulated o a maximum of 15 litres/min.
3. Pulsacoil Eco Stainless is supplied on a 100mm high installation base which is not included in the above measurements and is recommended to be installed upon.
4. The domestic hot water outlet temperature is automatically regulated to approximately 52°C, and the temperature is not user adjustable.

PulsaCoil Eco Stainless 180

Load Profile - L Energy Efficiency Class - D Engery Efficiemcy % - 36 Annual Consumption (kWh) - 4568 Other Load Profile - M Thermostat Temperature Setting °C - 75 Sound Power Level (DB) - 15 Off-Peak Available - Yes On-Peak Available - Yes Pulsacoil Eco Stainless 180 Heat Loss (Watts) - 60 Height (mm) - 1275 Width (mm) - 560 Depth (mm) - 630 Height Min Cupboard Size (mm) - 2025 Width Min Cupboard Size (mm) - 600 Depth Min Cupboard Size (mm) - 645 Weight (Empty) (Kg) - 48 Weight (Full) (Kg) - 213 Volume Of Water Heated By On-Peak Heater (Litres) - 85 Volume Of Water Heated By Off-Peak Heater (Litres) - 165

Gledhill PulsaCoil Eco 180 Model Selection

The Pulsacoil Eco 180 can work in the following apartment sizes as specified by the manufacturer. 2-3 Bedroom, with 1 bathroom and 2 en-suite shower room. This can be on a standard economy-7 tariff. 2-4 Bedroom, with 2 bathroom and 1 en-suite shower room. This can be on a economy-10 tariff only.

PulsaCoil Eco Stainless 180 Notes By Gledhill

1. Plastic top up cistern will be supplied separately and is not included in the measurements. We recommend it be installed directly on the Pulsacoil Eco Stainless if possible.
2. The flow rates are based on a 35°C  temperature and assume that recommended pressures and adequate flow are available at the appliance. The actual flow rate from the appliance is automatically regulated o a maximum of 15 litres/min.
3. Pulsacoil Eco Stainless is supplied on a 100mm high installation base which is not included in the above measurements and is recommended to be installed upon.
4. The domestic hot water outlet temperature is automatically regulated to approximately 52°C, and the temperature is not user adjustable.

PulsaCoil Eco Stainless 220

Load Profile - XL Energy Efficiency Class - D Engery Efficiemcy % - 37 Annual Consumption (kWh) - 6970 Other Load Profile - L/M Thermostat Temperature Setting °C - 75 Sound Power Level (DB) - 15 Off-Peak Available - Yes On-Peak Available - Yes Pulsacoil Eco Stainless 220 Heat Loss (Watts) - 71 Height (mm) - 1575 Width (mm) - 560 Depth (mm) - 630 Height Min Cupboard Size (mm) - 2325 Width Min Cupboard Size (mm) - 600 Depth Min Cupboard Size (mm) - 645 Weight (Empty) (Kg) - 55 Weight (Full) (Kg) - 265 Volume Of Water Heated By On-Peak Heater (Litres) - 111 Volume Of Water Heated By Off-Peak Heater (Litres) - 210



Gledhill PulsaCoil Eco 220 Model Selection

The Pulsacoil Eco 220 work in the following apartment sizes as specified by the manufacturer. 2-4 Bedroom, with 2 bathroom and 1 en-suite shower room. This can be on a standard economy-7 tariff.

PulsaCoil Eco Stainless 220 Notes By Gledhill

1. Plastic top up cistern will be supplied separately. It is not included in the measurements. We recommend it be installed directly on the Pulsacoil Eco Stainless if possible.
2. The flow rates are based on a 35°C  temperature and assume that recommended pressures. Adequate flow are available at the appliance. The actual flow rate from the appliance is automatically regulated o a maximum of 15 litres/min.
3. Pulsacoil Eco Stainless is supplied on a 100mm high installation base which is not included in the above measurements and is recommended to be installed upon.
4. The domestic hot water outlet temperature is automatically regulated to approximately 52°C. And the temperature is not user adjustable.

Additional Note:

The PulsaCoil Eco systems may come with either an immersion element with built on secondary cut out or with no built on secondary cut. The system with an element provided with no built on secondary cut out is classed as an upgrade and should be requested. Additional costs may incur depending on supplier.
